Data Copy Manual

2. Checking of communication

Check the communication condition before sending/receiving data.

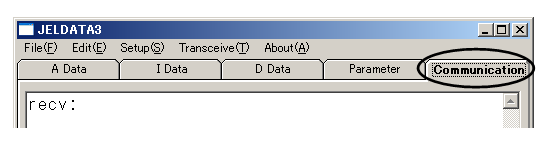

(1) Click the [Communication] tab in the main window.

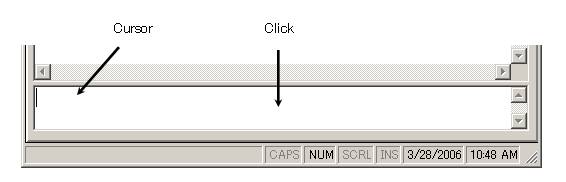

(2) Click the command window.
When a cursor is blinking in the command window, command can be input.

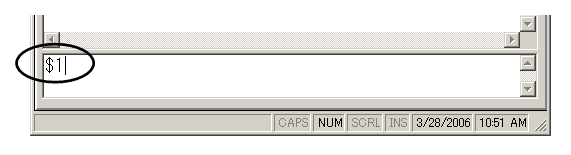

(3) Input $1 in the command window and press the [Enter] key.

*	$1 means the controller body number is set as 1.
	If the controller body number is set as 2, input $2 and [Enter].

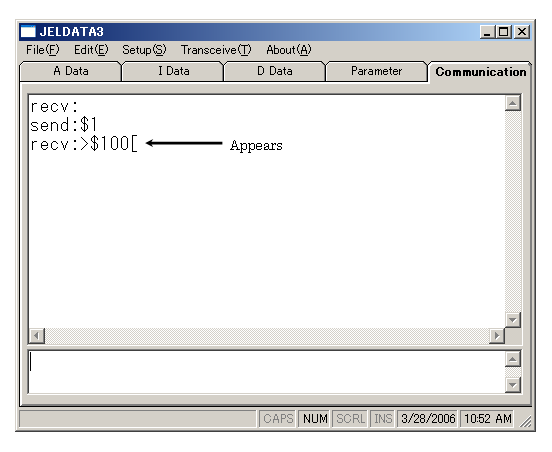

(4) When “recv:>$1**[“ appears on the last line in the response window, communication check is completed.

If it does not appear, there is a possibility that the communication is not ready yet. In this case, refer to “4. Before Communication “and follow the procedures again.

Example: Input $1

Response	recv:$100[ = It means "00" is returned from the controller. Communication check is OK.
	recv:$1[ = It means no response from a controller. Communication check is NG.

*	$1 means the controller body number is set as 1, and “recv:>$1** [“ is the received data from controller No.1.
	If the controller body number is set as 2, the received data will be “recv:>$2** [“.

*	When communication is not available or there is no response from a controller, cable connection or setting may not be correct or there may be other reasons.
	Please refer to the "Error Messages".
