JELDATA3 Operation Manual

6. File

6.1 Open

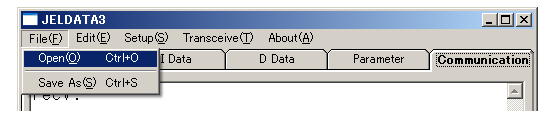

(Figure: 6-1)

Designate a data file to read “A Data”, “I Data”, “D Data” or Parameter (if it is supported).（Figure: 6-1）(Figure: 6-2)
While reading the data, the progress is shown on the status bar.

! Caution

If the reading file differs from the controller setting, a” file read error” occurs. Select the appropriate controller (robot selection) and execute “reading a file” again.

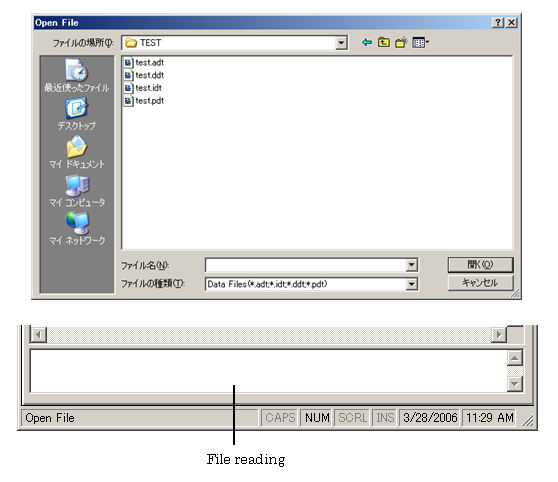

(Figure: 6-2)

---

---
